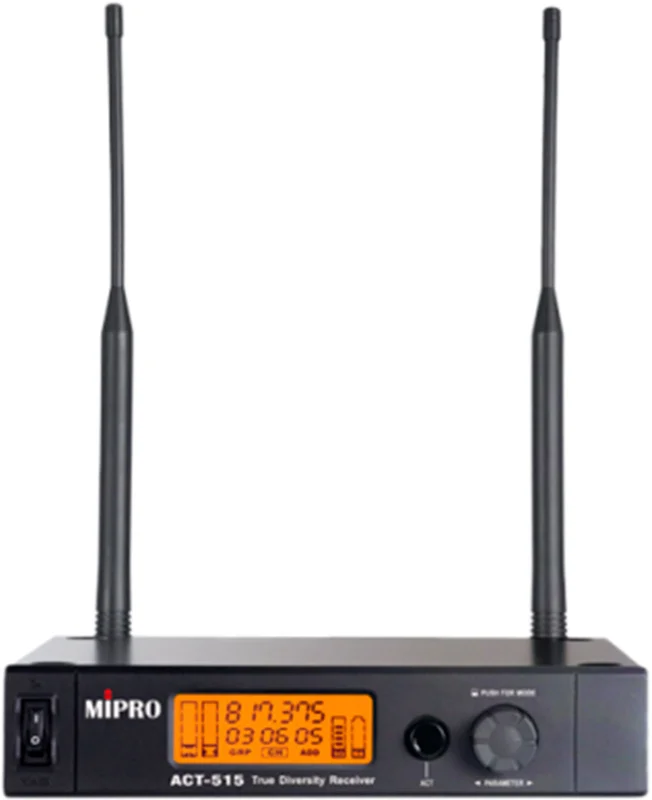

Description
– EIA standard metal chassis
– UHF frequency range
– Bandwidth 24 MHz
– Reception mode True diversity reception
– Sensitivity 6 dB?V @ S/N > 80 dB
– Frequency response 50 Hz ~ 18 kHz
– Dynamic range > 111 dBA
– Balanced audio output: +16dB / 0dB / -6dB, unbalanced: +10dB / 0dB / -6dB
– PC interface USB interface. MIPRO ACT-BUS for remote control of up to 64 channels.
– FSA compatible
– Detachable antenna. A 50? TNC female connector provides polarization for MIPRO antenna systems.
– Compatible with ACT-500H / ACT-500T / BC-T(UHF) / MT-92A
– Dual “PiloTone & NoiseLock” circuits minimize interference.
– Backlit LCD displays group, channel, frequency, RF and audio power, antenna A/B, transmitter battery status, interference warning indicator and panel lock.
– Easy identification of working mode (green) and standby mode (red) during performance.
– 1/4″ XLR balanced / unbalanced audio output jack, output level switch and DC input are located on the rear panel.
– PLL-synthesized UHF technology for improved RF stability, reduced spurious emissions and greater frequency agility. One-touch autoscan for clear and interference-free channel.
– 80 preset unconditional channels and 8 user-defined channels can be saved and recalled.
– Adjustable SQ ” for higher sensitivity to increase receiving distance or lower sensitivity to reduce interference.
– Adjust the SQ when the interference indicator is on to obtain the ideal sensitivity level.
– Power Supply External switching power supply 100~240V AC.
– Dimensions 210 × 44 × 163 mm (W × H × D)
– Weight Approx. 0.9 kg
